PCB copy board in the case of existing PCB circuit board cloning, prototyping, component replacement, production BOM list, export schematic diagrams, etc. PCBQuick clones the circuit board, including PCB blank board clone (provide PCB files, BOM list and  schematics), Also provides PCB manufacturing, component purchase and assembly.
PCBQuick PCB copy board advantages:
1. Have a professional team and engineers have more than 10 years of actual combat experience
2. Serving electronic circuit board cloning and prototyping in all walks of life
3 For a variety of blind buried hole multiple copy board short cycle, saving customers time, reduce costs
4. Solve the problem of early shutdown of factory production
5. Ensure that the cloned product and the customer provide a 100% consistent model
PCBQuick PCB copy board provides software format files: PowerPCB, Protel99/Se, PAD2000 and so on.
PCBQuick PCB copy board project consulting process:

1. Provide chip print pictures and board size, price evaluation

2. Price confirmation, send samples

3. Receive physical samples, final confirmation prices, prepaid project costs

4. Start copying the PCB

5. We provide PCB copy board documents, bill of materials, schematics, customer confirmation

6. Start PCB production

7. If the customer requests PCBA production, after the electronic whiteboard BOM table comes out, conduct the PCBA quotation

8. Price confirmation at the same time purchase components.

9. Finalize: PCB copy board + PCB production + component purchase + PCBA assembly
PCB layout design
With professional PCB design concept, excellent PCB LAYOUT team and strict design process, the company provides customers with high-quality and high-quality services. The company provides PCB impedance calculation and lamination design for customers free of charge; We support mainstream design tools: Cadence/Allegro, Pads, Altium, etc. Schematic tool support: CIS/ORCAD, Protel DXP, Design Capture, etc.

Information required for PCB design:

1. Schematic diagram: Complete electronic document format that can generate correct network table;

2. Mechanical dimension: provide identification of specific position and direction of positioning device and identification of specific height limit position area;

3. Equipment packaging: Provide equipment packaging library or electronic material specifications;

4. Wiring guidelines: describe specific requirements for special signals and design requirements for impedance and lamination.

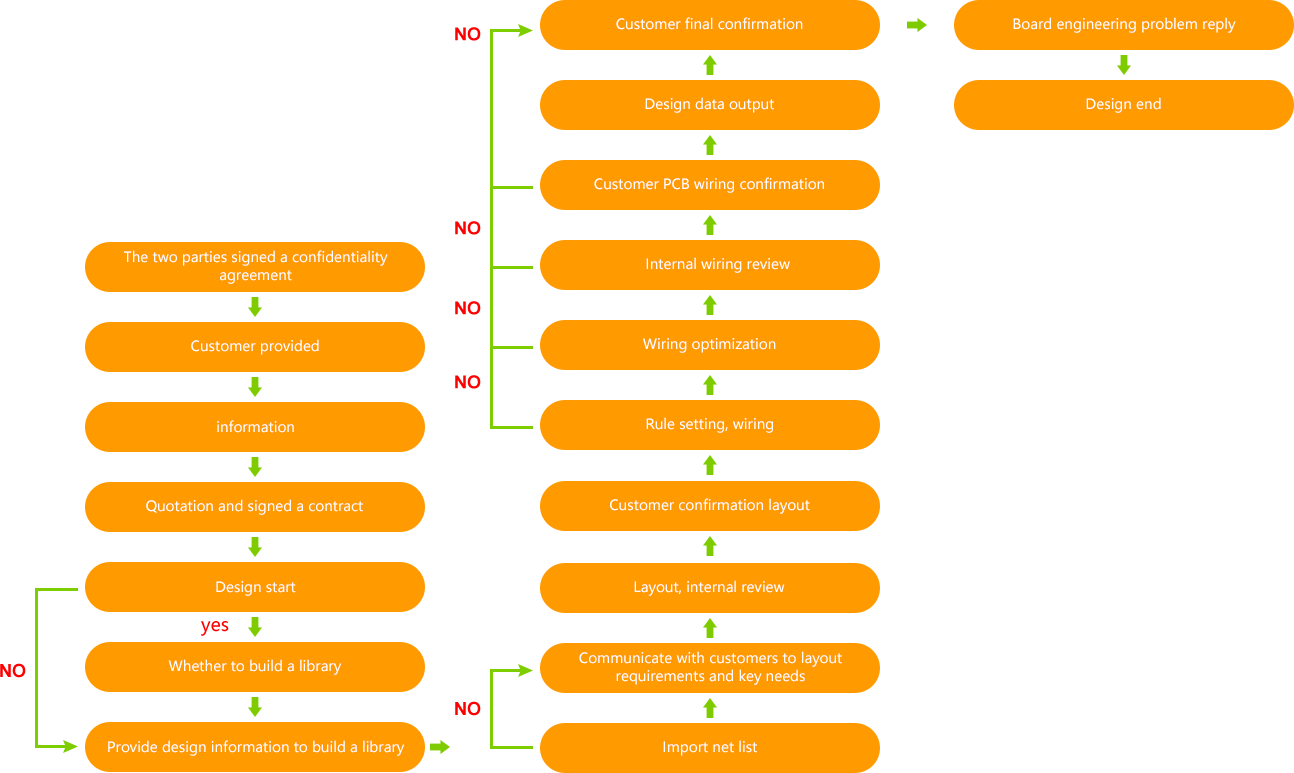

The design process
Design parameters
Top
unlimited
Maximum Design PIN
60000
Maximum Number of Connections
42000
Minimum Line Width
2.5 million
Minimum Line Spacing
2.5 million
Smallest Hole
4mil (radius perforation)
Maximum number of BGA
10
Minimum BGA PIN pitch
0.4mm
Maximum BGA PIN code
4200
Maximum number of networks
15000

Design lead time

Pin number
0-1000
Design lead time (working days)
3-5 days
2000-3000
5-8 days
4000-5000
8-12 days
6000-7000
12-15 days
8000-9000
15-18 days
10000-12000
18-20 days
13000-15000
20-22 days
16000-18000
22-25 days
18000-20000
25-30 days
Limit due date function
10000Pin / 7 days
PS: The above delivery period is the regular delivery period. It is necessary to fully evaluate the accurate design lead time based on the number of components of the circuit board, the difficulty level, the number of layers and other factors!
